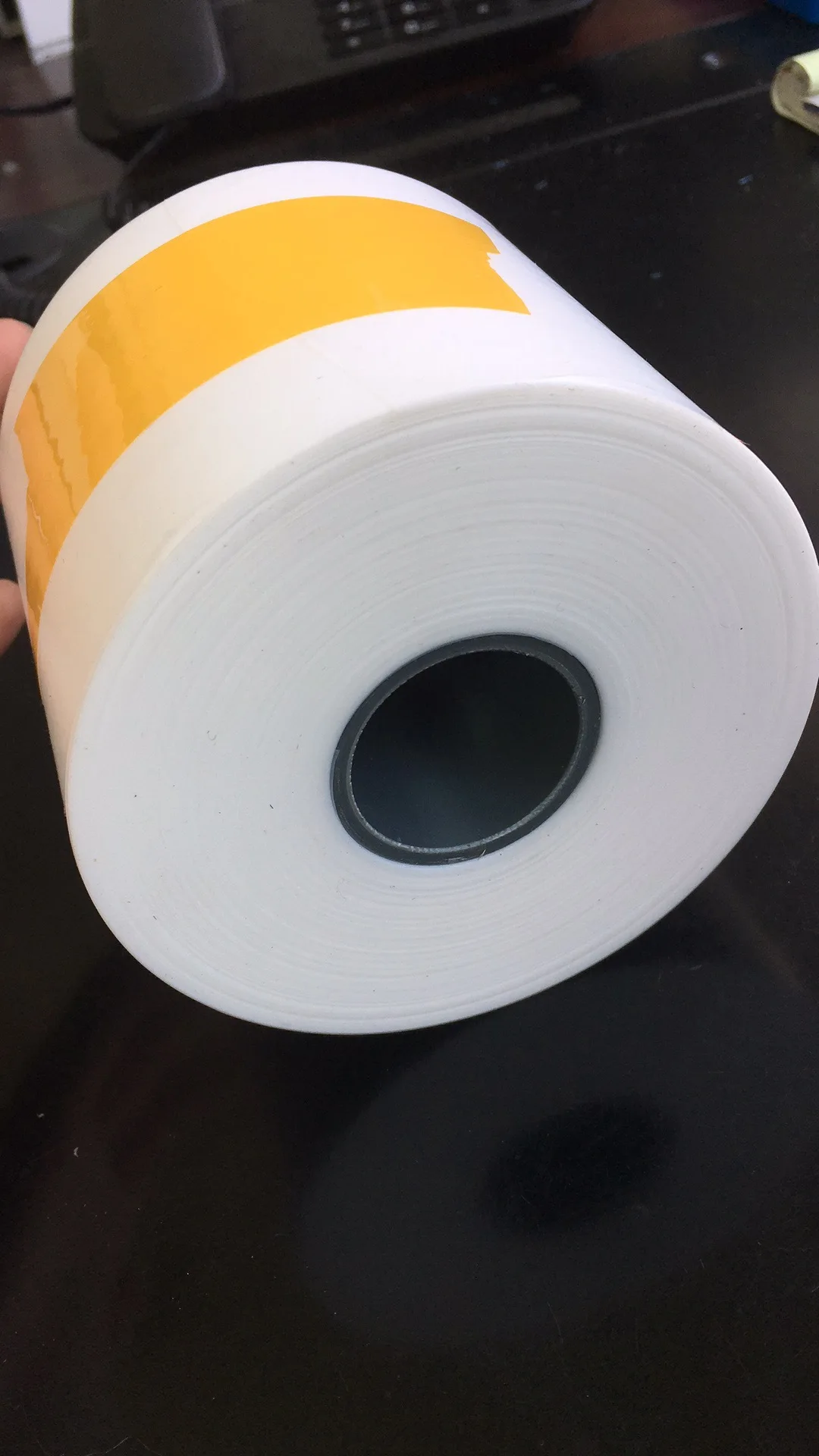

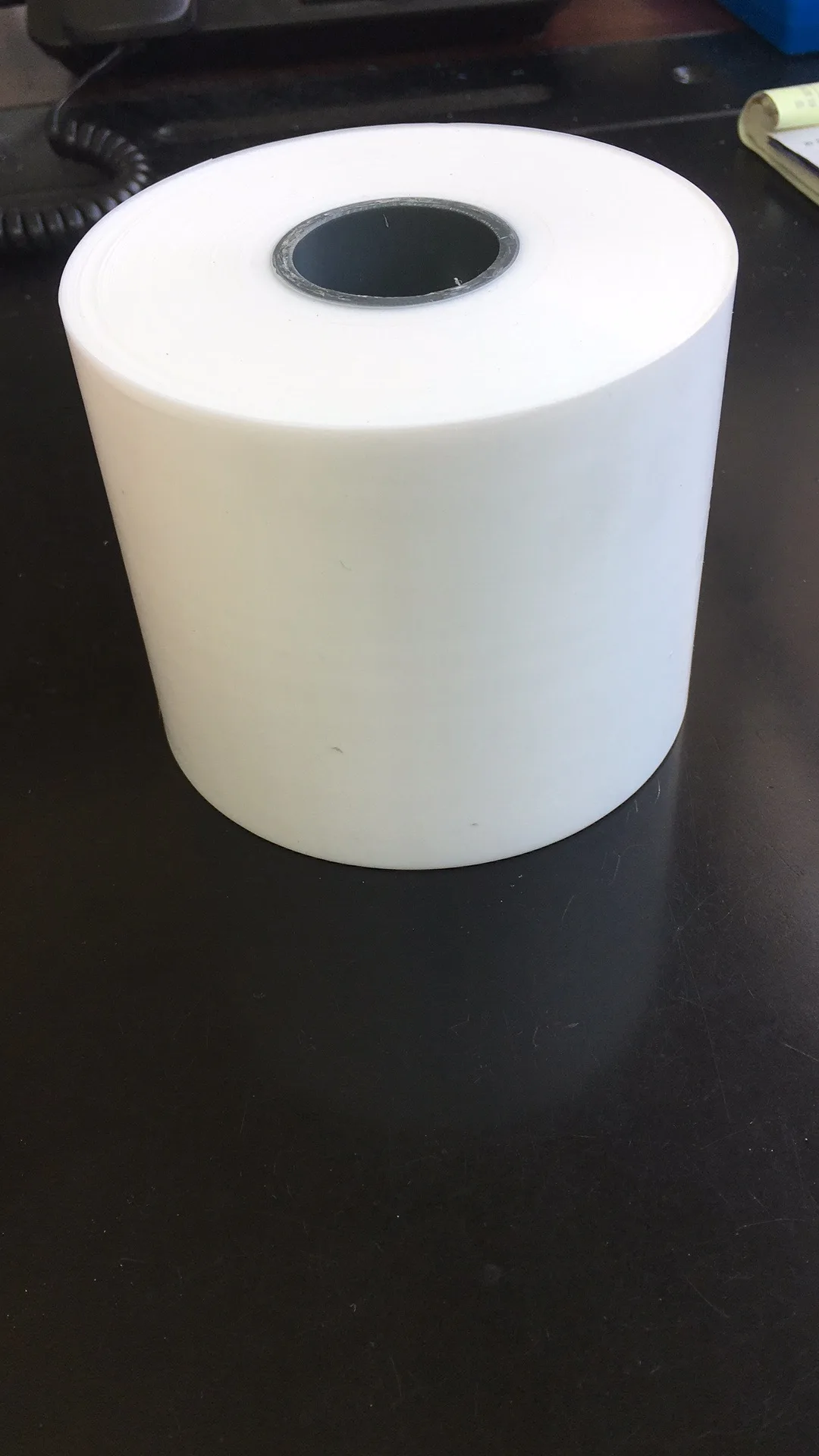

PTFE film Teflon Film 0.03mm thickness

FOB Reference Price:Get Latest Price
$10.00 - $11.00 / Kilograms | 50 Kilogram/Kilograms (Min. Order)
Lead Time:
Quantity(Kilograms) 1 - 100 >100
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
ZONEYOUNG
Model Number:
ZY-2001
Material:
PTFE
Thickness:
0.03mm
Size:
customized
Product name:
ptfe film
Cleanliness:
Clean plate surface,uniform quality
Tensile strength Mpa:
25.5
Breakage elongation %:
250
Volume density g/l:
500±100
Average grain size um:
180±80
Moisture content %:
0.04
Melting point ℃:
327±5
Standard specific gravity:
2.130~2.160
Thermal instability index ≤:
20
Supply Ability
Supply Ability:
5000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
PP bags+ foam plastic + wooden case
Port
From Qingdao,Shanghai port,China

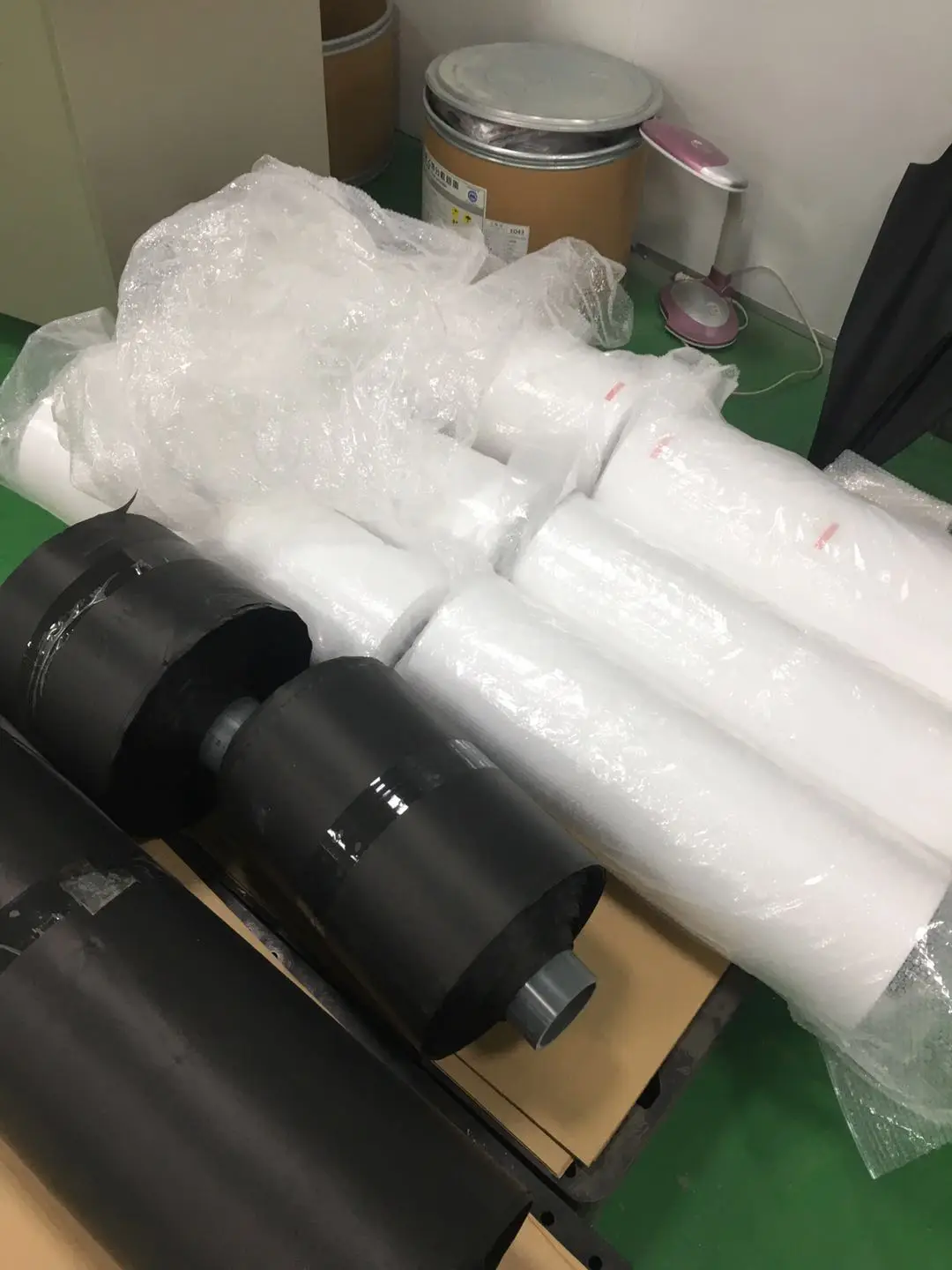

Picture Example:
package-img
package-img
Lead Time :
Quantity(Kilograms) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Video Description

PTFE film
PTFE film is used PTFE resin by moulding and sintering into blank, made by turning into the film is not directed film, not directed film made by the rolling direction and semi-directed film. It has good electrical PTFE-specific properties, non-sticky and low friction coefficient and other characteristies. PTFE film is for the use of high temperature, corrosive liquid used in motor as a generator of the insulation material, coil insulation material, a variety of machines into the mouth of the insulation material, etc..


Product Name
PTFE FILM
Material
PTFE POWDER
Color
white ,pink,yellow ,green,grey,blue
width
2000mm 1200mm 1000mm or as customer need
Thickness
0.02mm-0.25mm
Length
5-1500m
Density
2.3g/cm3
Used
Water and gas pipe sealing



Product Description
White pure material Teflon film PTFE film
1. Temperature resistance ---It is able to work stably between -180°C to +260°C.
2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.
3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.
4. Anti-aging, weathering resistance.
5. Excellent insulation property.
6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.
